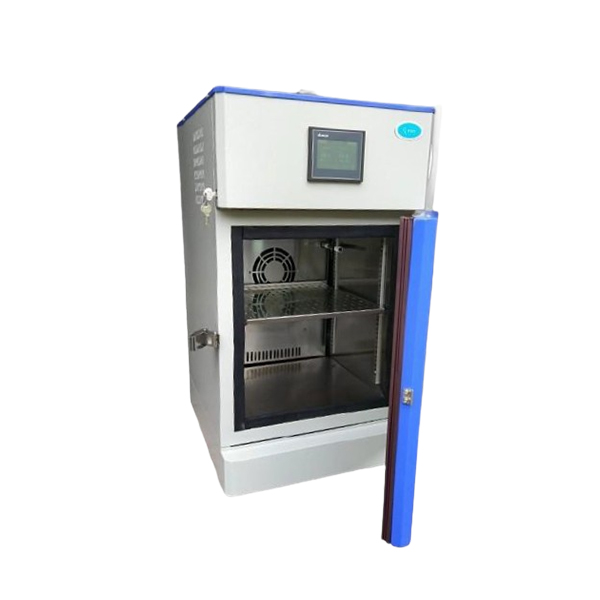

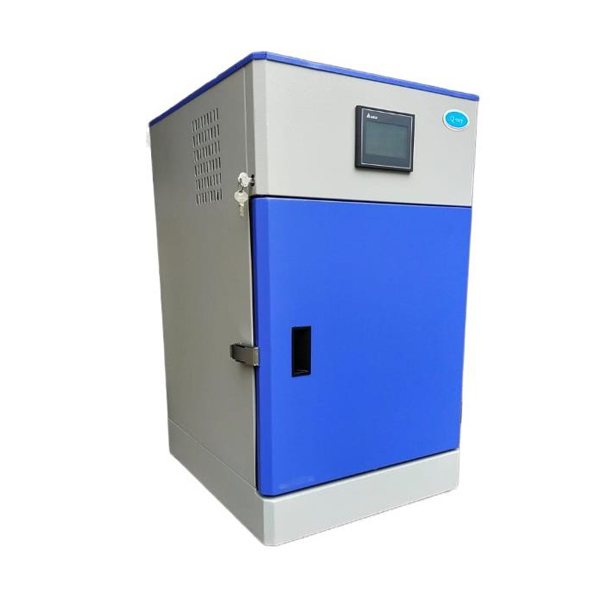

Temperature & Humidity Chamber

Temperature and humidity chambers simulate specific, controlled environmental conditions to test the durability, reliability, and stability of products. They are essential across various industries for running stress tests, shelf-life studies, and material conditioning before market release.

Applications:

  • Pharmaceuticals
  • Electronics
  • Materials Testing
  • Automotive & Aerospace

Functions:

  • Temperature humidity chambers focus on accelerated life-cycle testing and durability.
  • Temperature humidity chambers fluctuate through a wider, more extreme range of temperatures (often -40°C to 150°C) and varying humidity levels (10% to 98% RH) over shorter periods.
  • Temperature humidity chambers prioritize rapid rate-of-change (thermal shock capabilities) and wider operational extremes.
  • Environmental chambers emphasize flexibility and performance:
  • Rapid temperature change (thermal cycling)
  • Programmable test profiles
  • Multi-condition simulation (temperature + humidity + cycling)
  • High load capacity for industrial testing

Testing Duration:

Minutes, hours, or cycles.

Download Brochure

Note: Invent in Standard model and Customized model.

Categories: ,

Description

U – Series INTERIOR DIMENSION EXTERIOR DIMENSION TRAY Capacity
H L B H L B QTY LITTER
450 350 320 1270 650 620 1 50
500 500 500 1320 800 800 1 125
600 600 600 1420 900 900 1 216
700 700 700 1720 1000 1000 1 343
800 800 800 1820 1100 1100 1 512
900 900 900 1920 900 900 1 729
1000 1000 1000 2020 1300 1300 1 1000
 D – Series 450 350 320 1170 550 520 1 50
500 500 500 1220 700 700 1 125
600 600 600 1320 800 800 1 216
700 700 700 1620 900 900 1 343
800 800 800 1720 1000 1000 1 512
900 900 900 1820 1100 1100 1 729
1000 1000 1000 1920 1200 1200 1 1000
M, L – Series 450 350 320 1130 510 480 1 50
500 500 500 1180 660 660 1 125
600 600 600 1280 760 760 1 216
700 700 700 1580 860 860 1 343
800 800 800 1680 960 960 1 512
930 930 930 1790 1090 1390 1 800
1000 1000 1000 1880 1160 1160 1 1000
Temperature rage -70°Cto180°C
Controller type  Micro processor based PLC controller
Inner cabinet SS304L
Outer cabinet CRCA Powder coated
Insulation material High density PUF insulated 150mm thickness
Refrigerant used  R404a/508B (CFC , HCFC free)
Humidity & Temp sensor High accuracy Electronic type
Temperature alarm Set value +/- 3°C
Humidity alarm Set value +/- 5%
